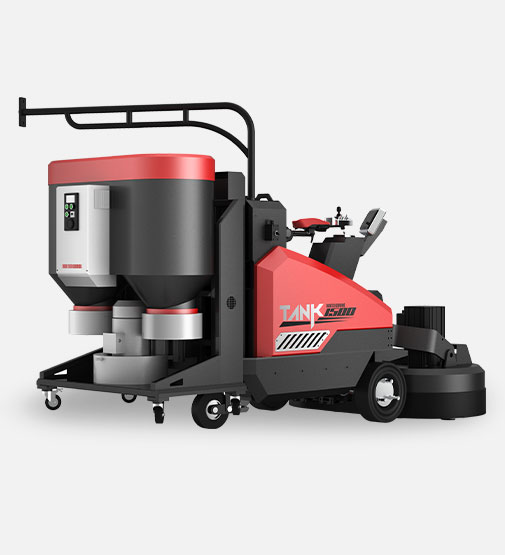

Tank-1500 Ride on Planetary Grinder

The Tank-1500 is a large platform planetary grinder designed for high production on large projects. The machine is equipped with an intuitive control panel that gives the operator continuous feedback. The hydraulic lift for the heads makes it easy to change diamond tooling. The robotic arms adjust automatically to maintain consistent grinding pressure. There are mounted front and rear cameras with LED lights to give the operator vision during operation. The high CFM dust collector/pre-separator easily mounts to the rear of the machine and lifts off of the floor via hydraulic assist. 360 swing arm keeps the cable away from the machine.

Two options are available: cockpit control or remote control.


Tank-1500 Specifications


Motor:

2x22 KW / 2x30 HP


Power:

3 phase 480v


FLA:

90 amps w/o dust collector


Weight:

3826 lbs


Grinding Width:

61 inches


Head Pressure:

2160 lbs


Grinding Speed:

280-1200 RPM


Grinding Heads:

8 x 11 inches


Dimensions:

(L-W-H) 98″-68″-65”


Water Tank

25 L / 6.6 gals


Dust Collecter


Motor:

7.5 KW / 10 HP


Power:

3 phase 480v


Weight:

820 lbs


CFM:

411


Vacuum:

30 kPa


Pre seperator:

Cyclone


Dust collection:


Longopak dust bag system


Flter cleaning:


Automatic pulse
