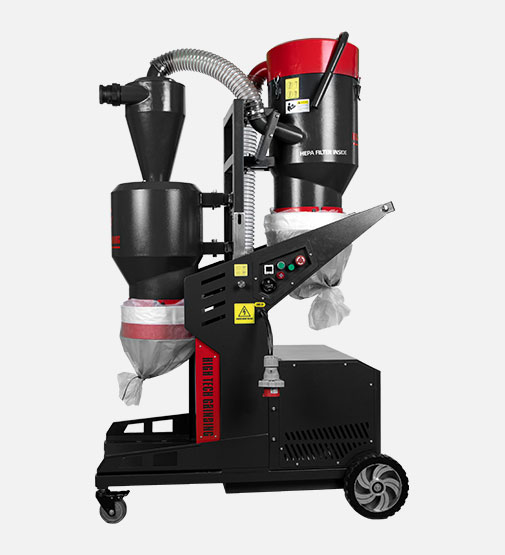

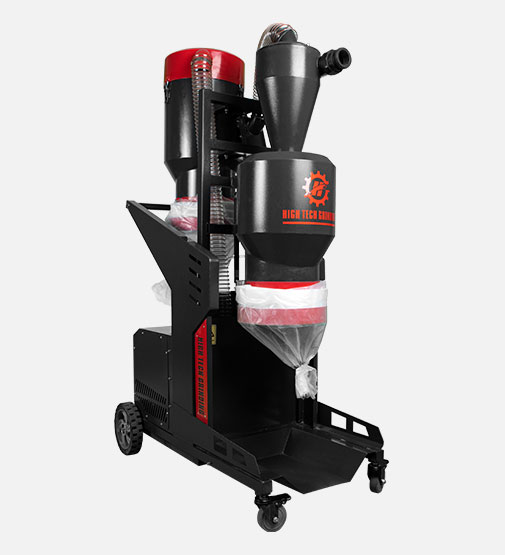

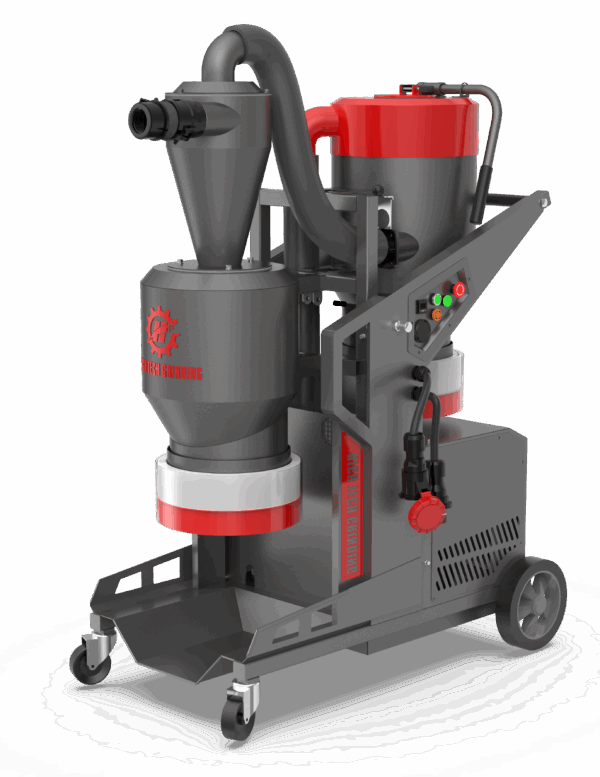

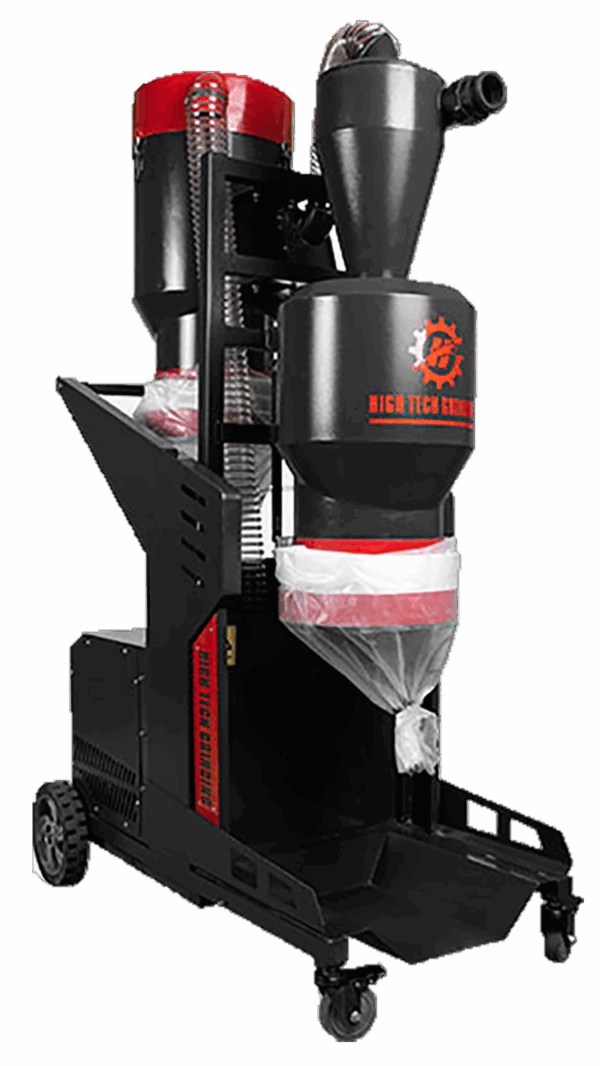

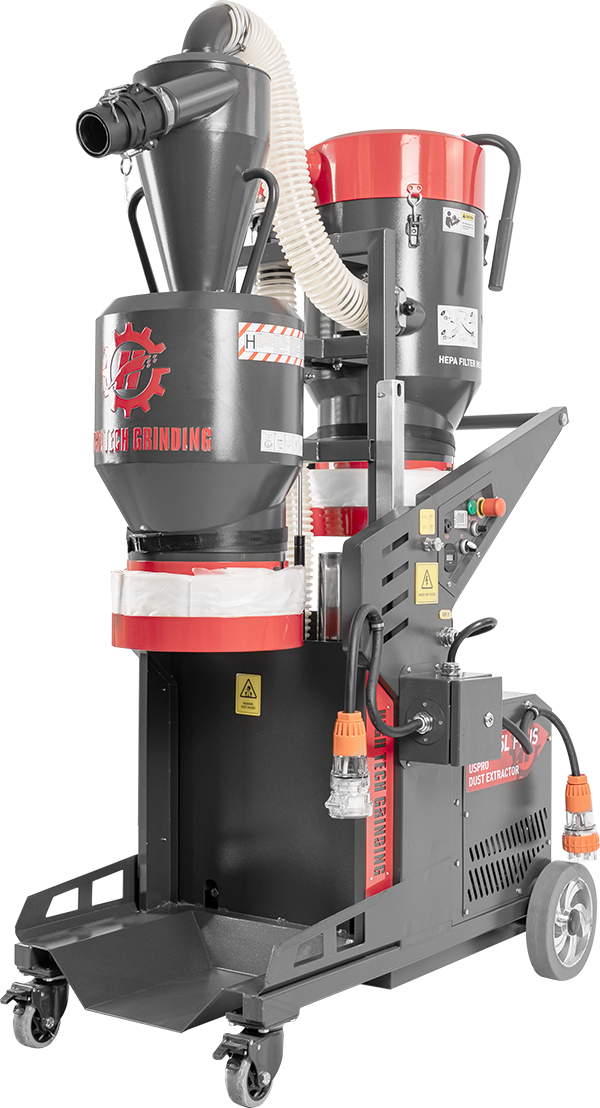

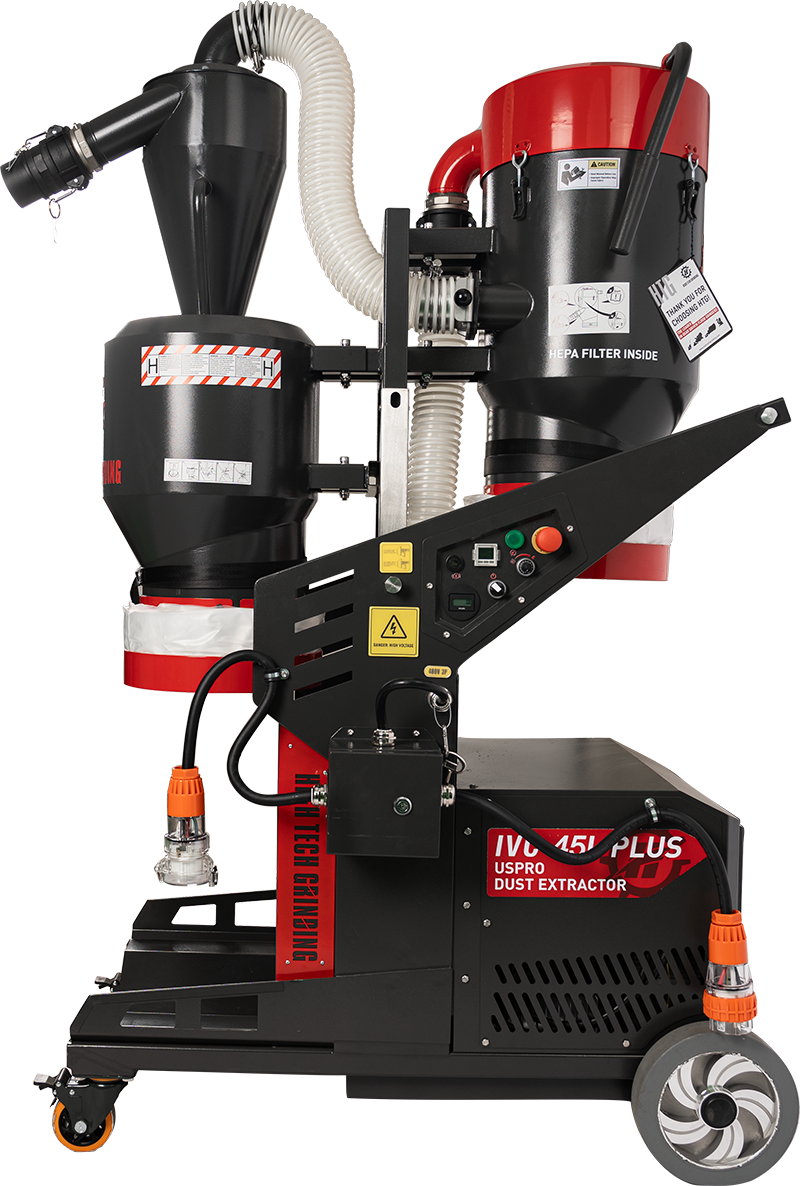

IVC-45L Plus Dust Collector

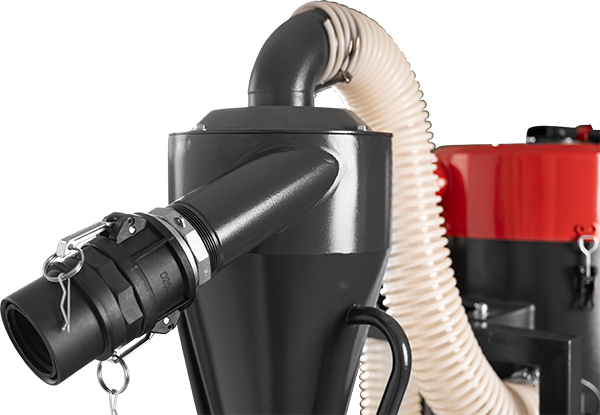

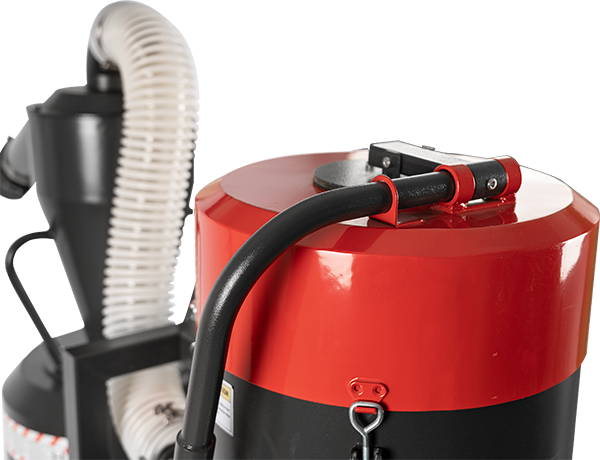

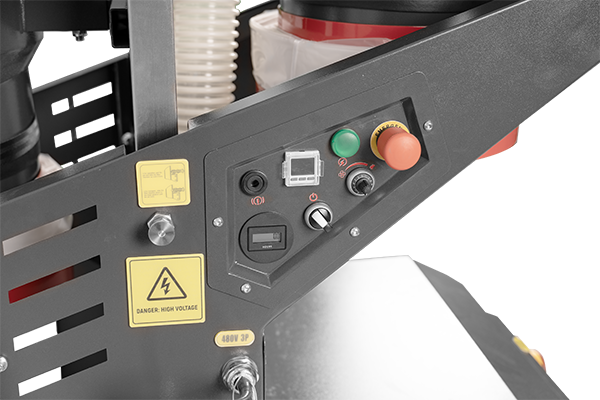

The IVC-45L Plus is a HEPA dust collector, which features a two-stage filtering system including a cyclone separator and a HEPA H13 filter. With an efficiency >99.99%, securing a high standard of quality and safety. IVC-45L complies with OSHA regulations for concrete dust handling, with its manual shaker cleaning system, IVC-45L Plus cleans the filter in an easy and effective way and achieves high production capacity. The lift-able design for the two dust bins makes it easy for work and transport. The integrated control panel highlights the working parameters, including a new potentiometer to adjust the CFM during operation. IVC-45L provides a 50 Amp electric outlet to a grinder for convenience.


Specifications


Motor:

5.5 KW / 7.5 HP


Power:

3 phase 240v / 480v


FLA:

23 amps / 11 amps


Weight:

494 LBS


CFM:

353


Pre seperator:

Cyclone


Dust hose:

3" / +2" adapter


Dust collection:

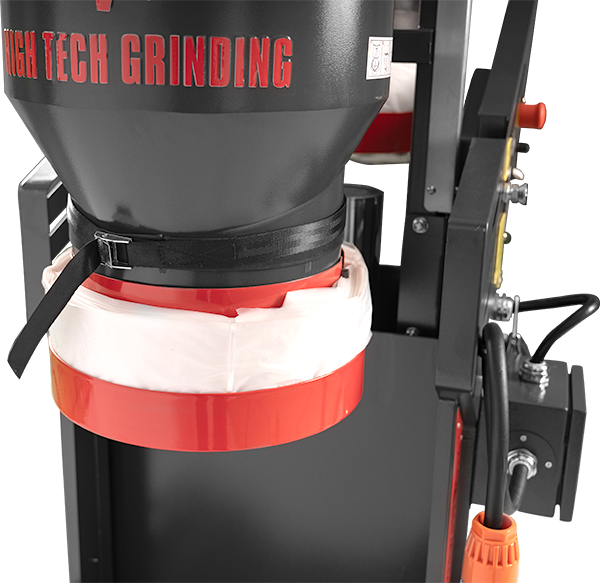

Longopak dust bag system


Dimensions:

(L-W-H) 49" x 28" x 64"


Flter cleaning:


Manual shaker

Get a Quote
Manual
