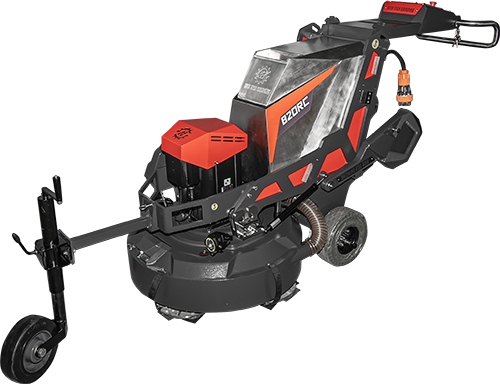

HTG-820RC Remote Control Grinder / Autopilot

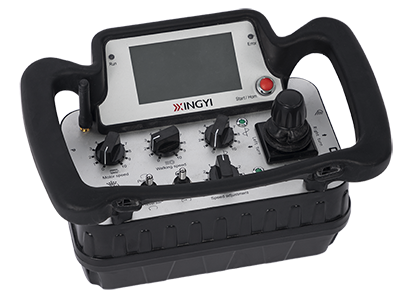

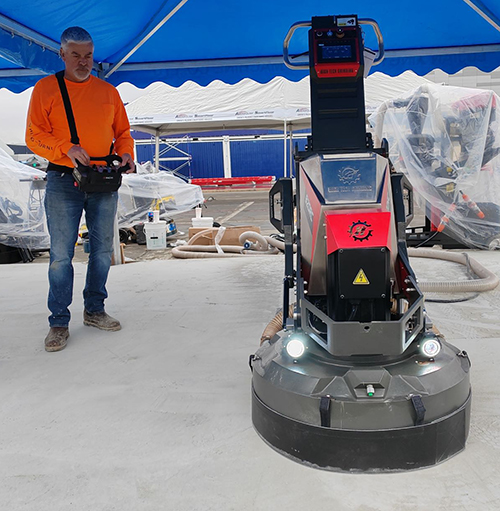

The HTG-820RC is a large platform planetary grinder with an advanced remote control that is equipped with the autopilot system engineered by Xingyi. This high production 4 head machine will run consecutive passes over a floor without the influence of an operator. This feature will allow a single operator to run 2 machine set-ups, saving time and labor.
| HTG 820 RC Specifications: |
|---|
| Motor: 15KW/18KW – 20/25HP |
| Power: 3 phase 480 V / 3 phase 240V |
| FLA: 40 amps / 50 amps |
| Weight: 1367 lbs. |
| Grinding Width: 32” |
| Grinding Head Pressure: 651-430 lbs. |
| Grinding Disc Speed: 280-1200 rpm |
| Planetary Disc speed: 30-127 rpm |

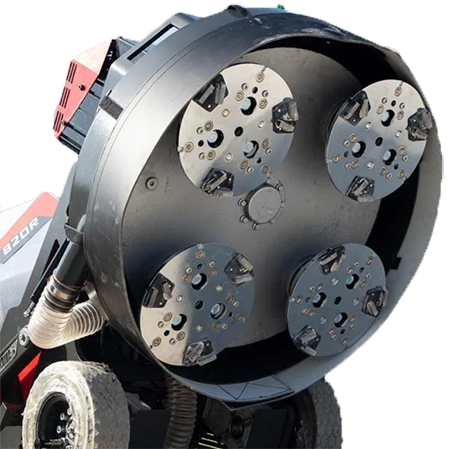

| Grinding Discs: 4 x 11” |
| Dimensions: (L-W-H) 75″-33″-76” |
| Water Tank: 20 L |
