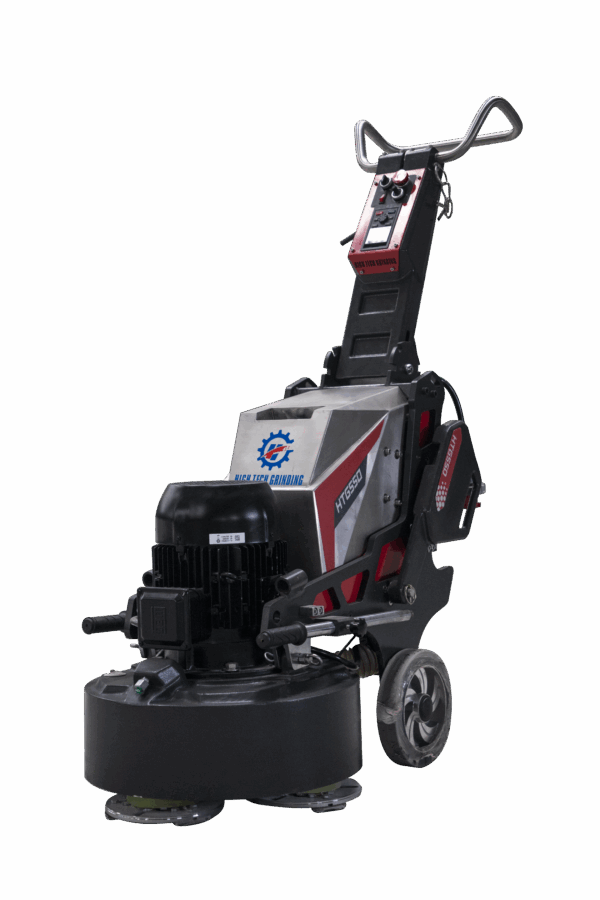

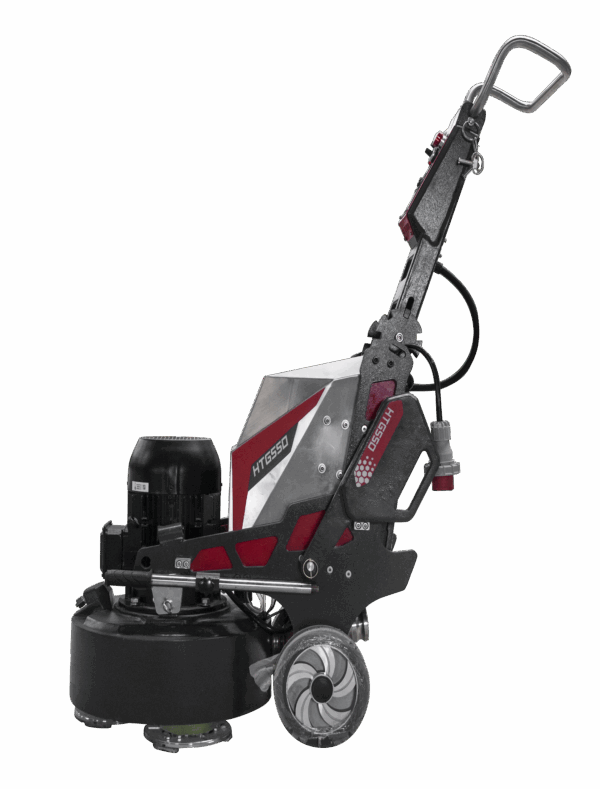

HTG-550 PRO Planetary Grinder

The HTG-550 PRO is a small platform 22″ planetary grinder suitable for coating removal, surface prep, and polishing concrete. This machine is in single phase 240V, making it perfect for smaller projects or residential polishing. This new updated version of the 550 is designed to look like the larger Pro series grinders. with a new wider gear box and increased head pressure.


Specifications


Motor:

5.5 KW / 8 HP


Power:

single phase 240v


FLA:

32 amps


Weight:

598 LBS


Grinding Width:

22 inches


Head Pressure:

319 - 390


Motor Speed:

450-1680 RPM

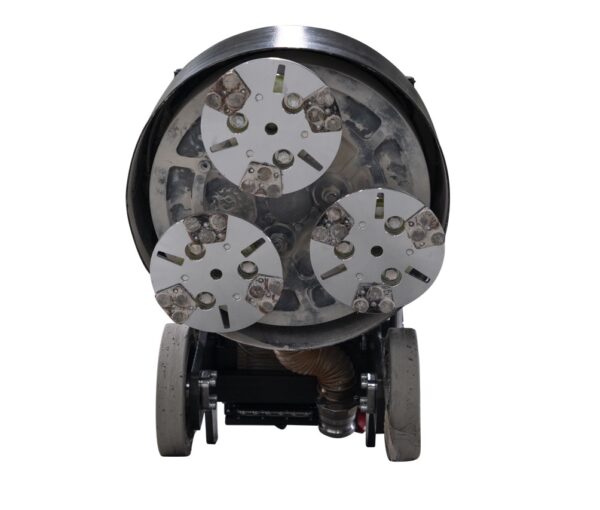

Grinding Heads:

3 x 9 inches


Dimensions:

(L-W-H) 40" x 23" x 40"


Water Tank

15 L / 4 gals

Get a Quote
Manual
